Product Details

Description

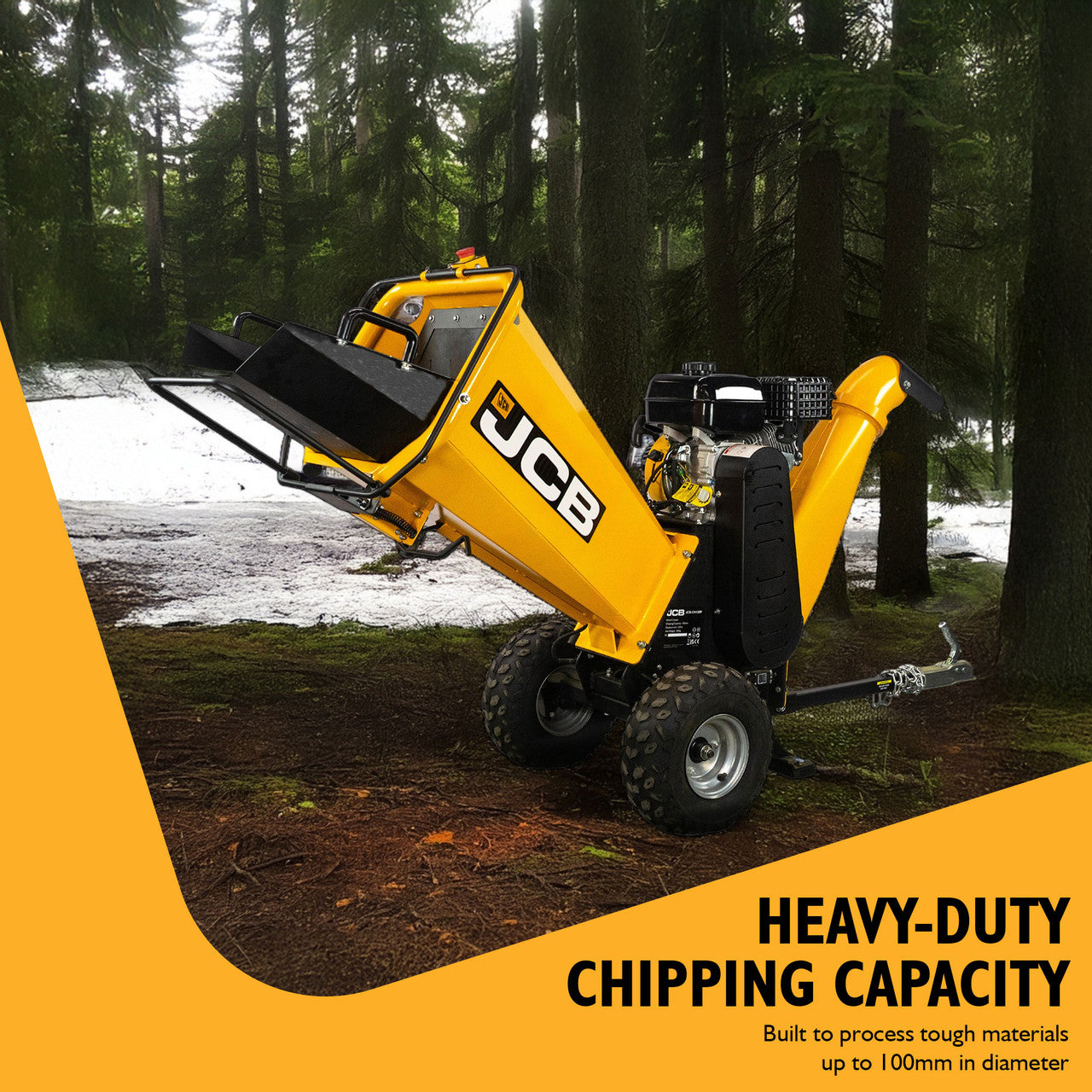

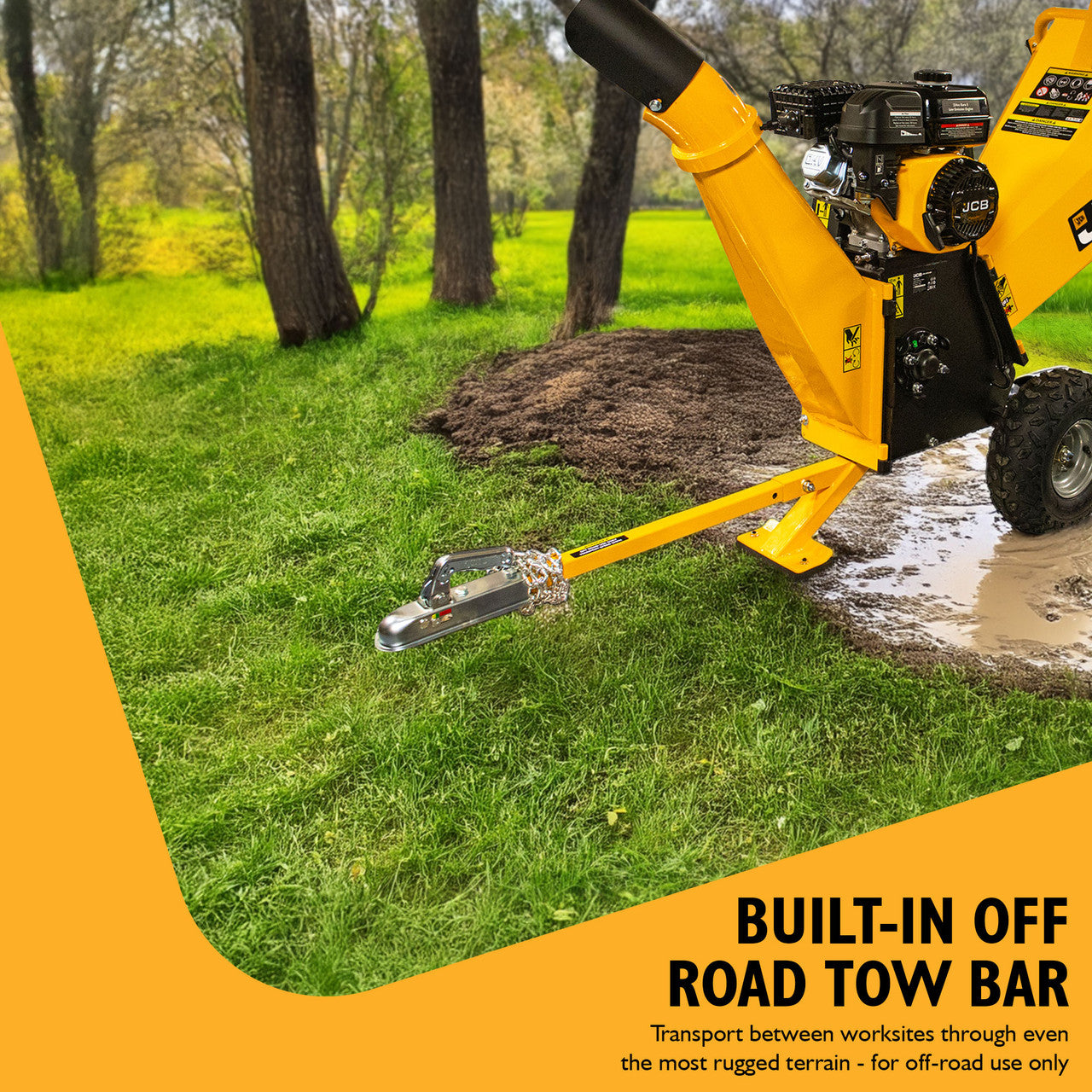

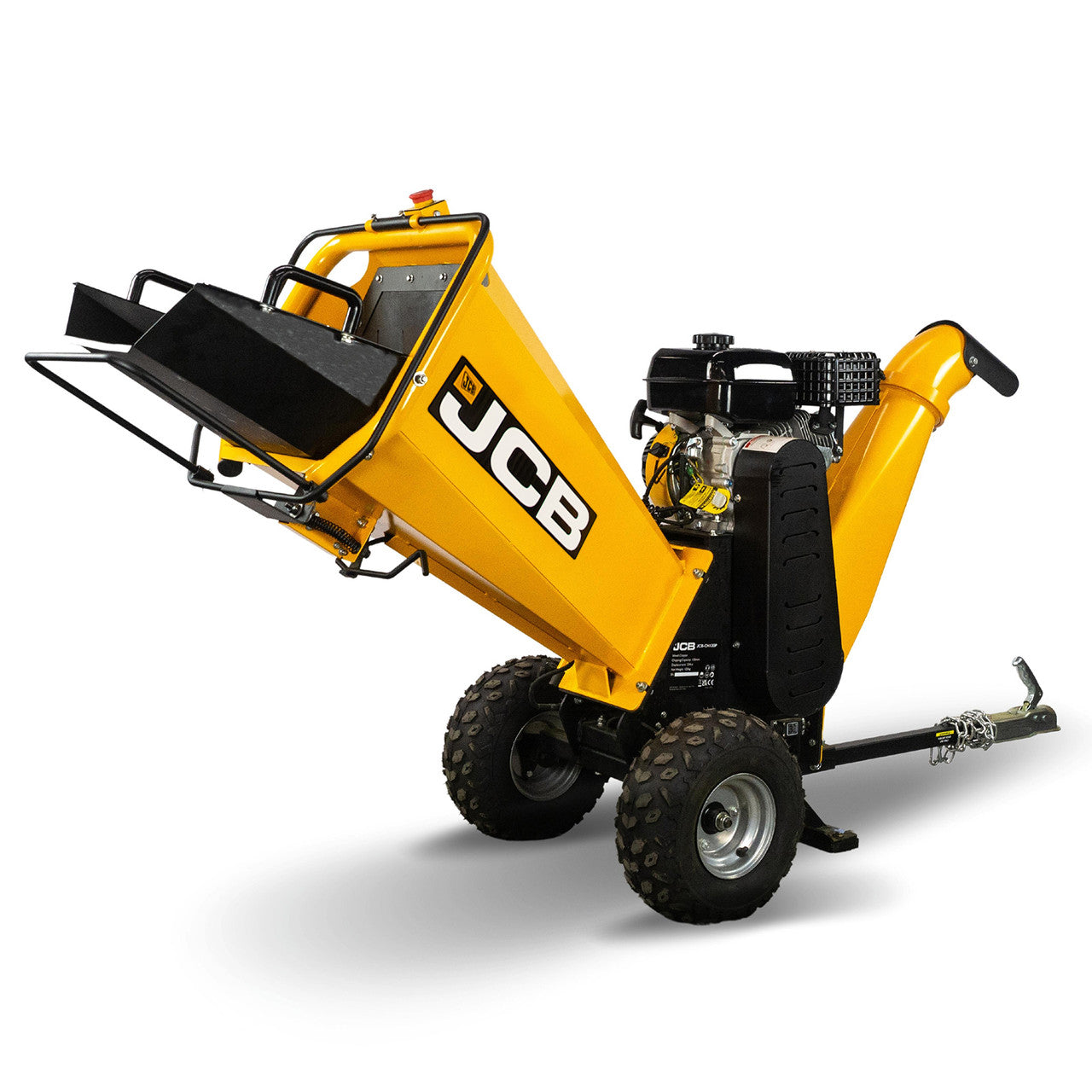

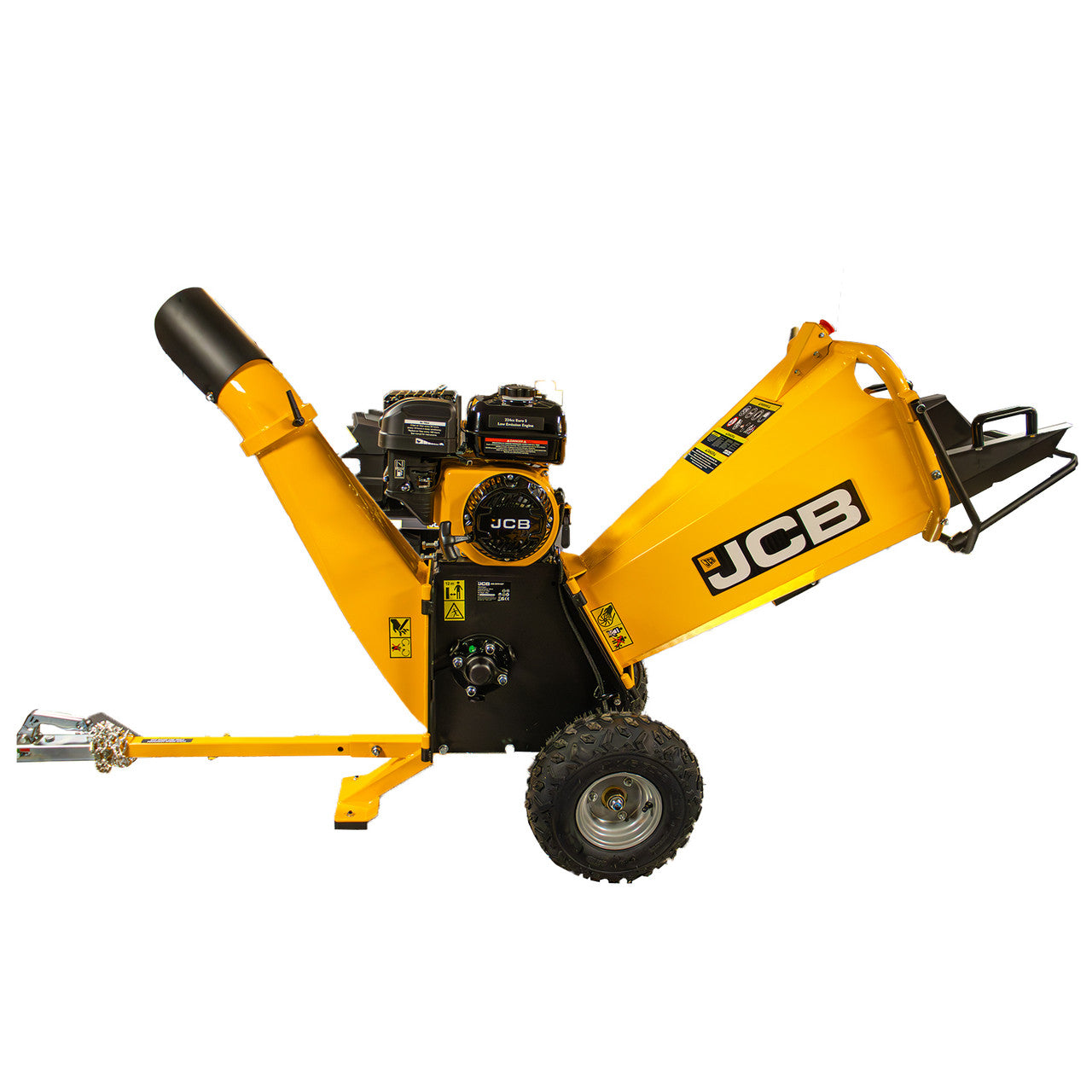

Our JCB-CH75100P petrol wood chipper is built with high quality robust materials to cope with chipping of logs up to 100 mm / 4” in diameter. With an ATV tow mount, this is ideal for anyone managing woodland or shrub on estates, farms, construction sites, roadways, pathways or general large garden tidy up. (Note, this is not road towable).

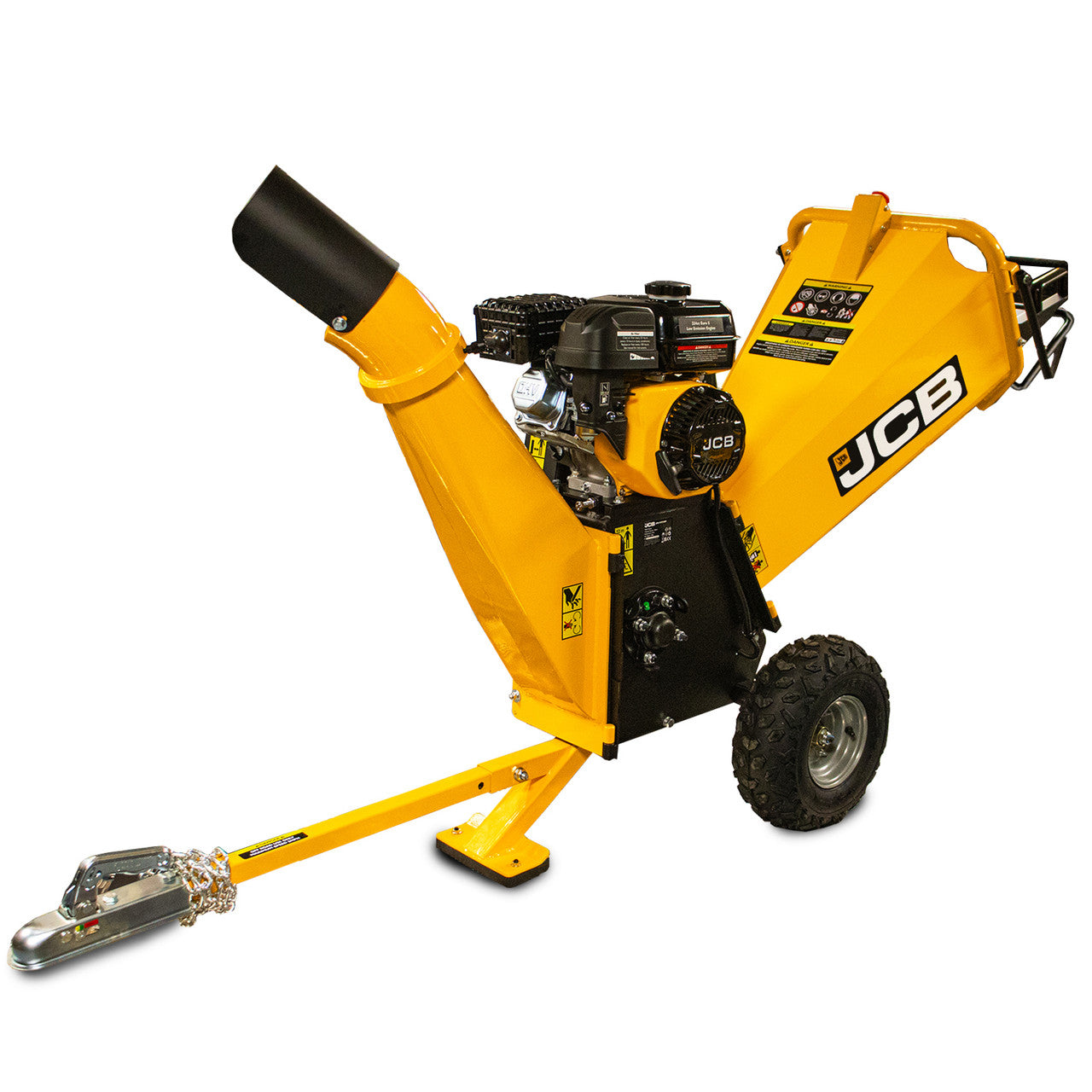

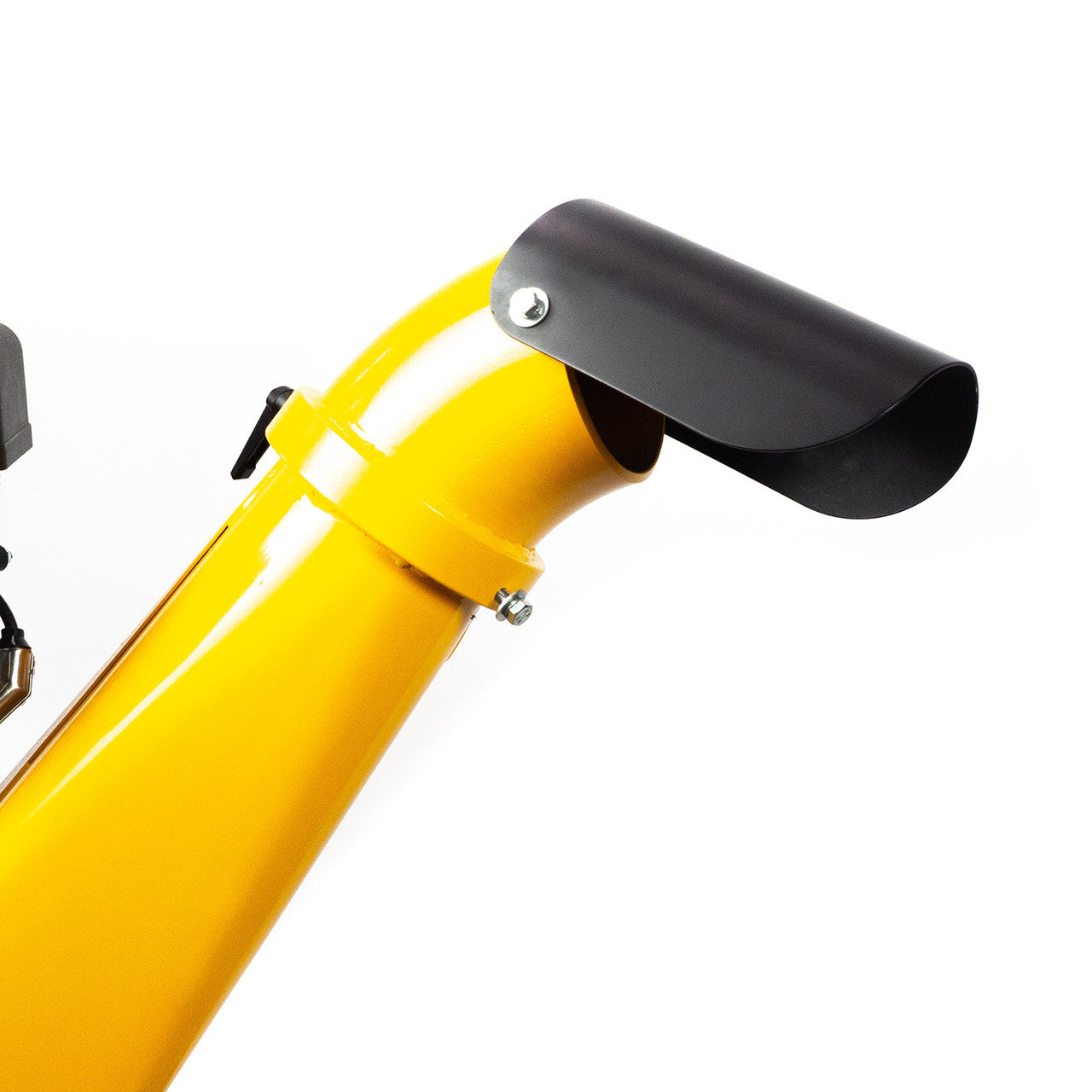

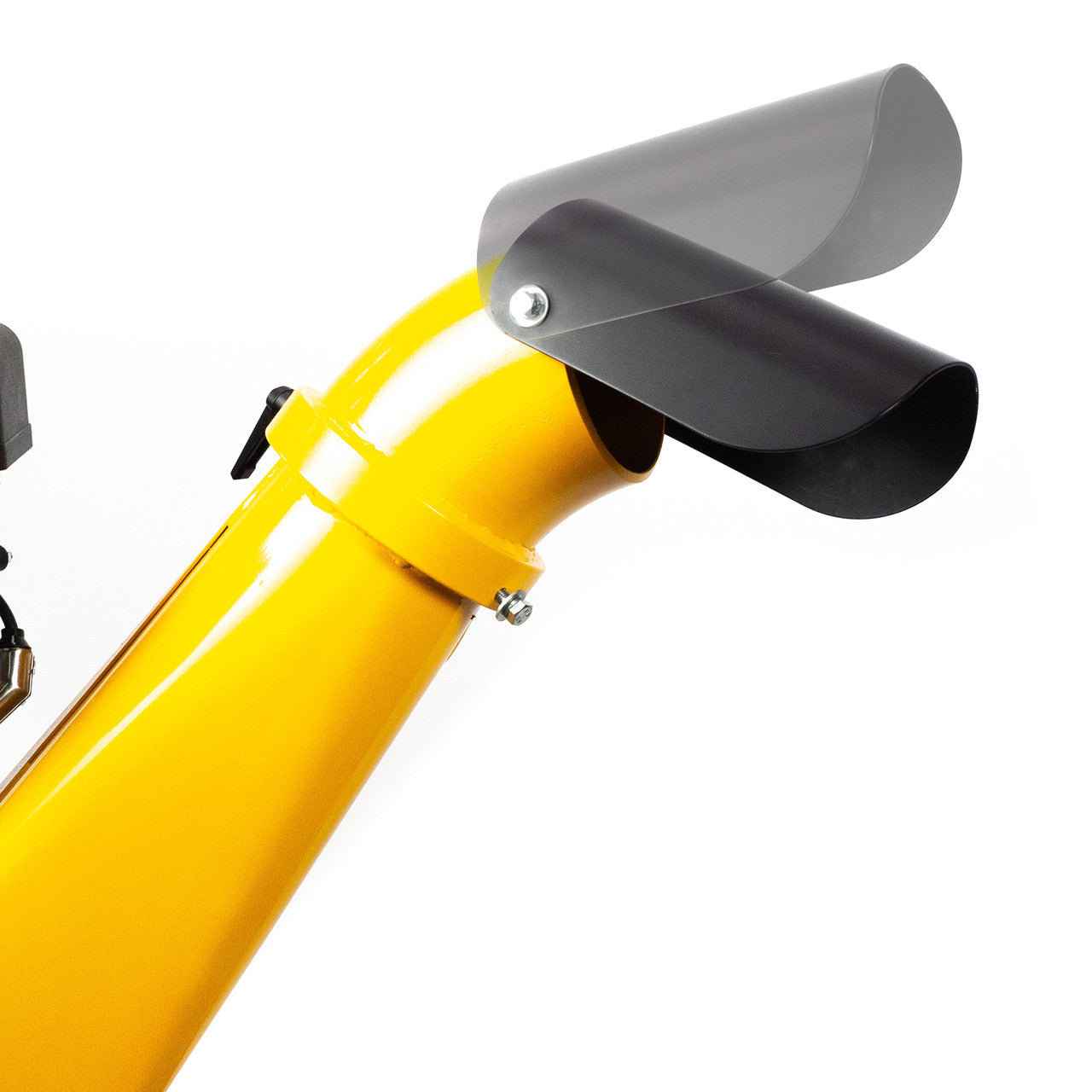

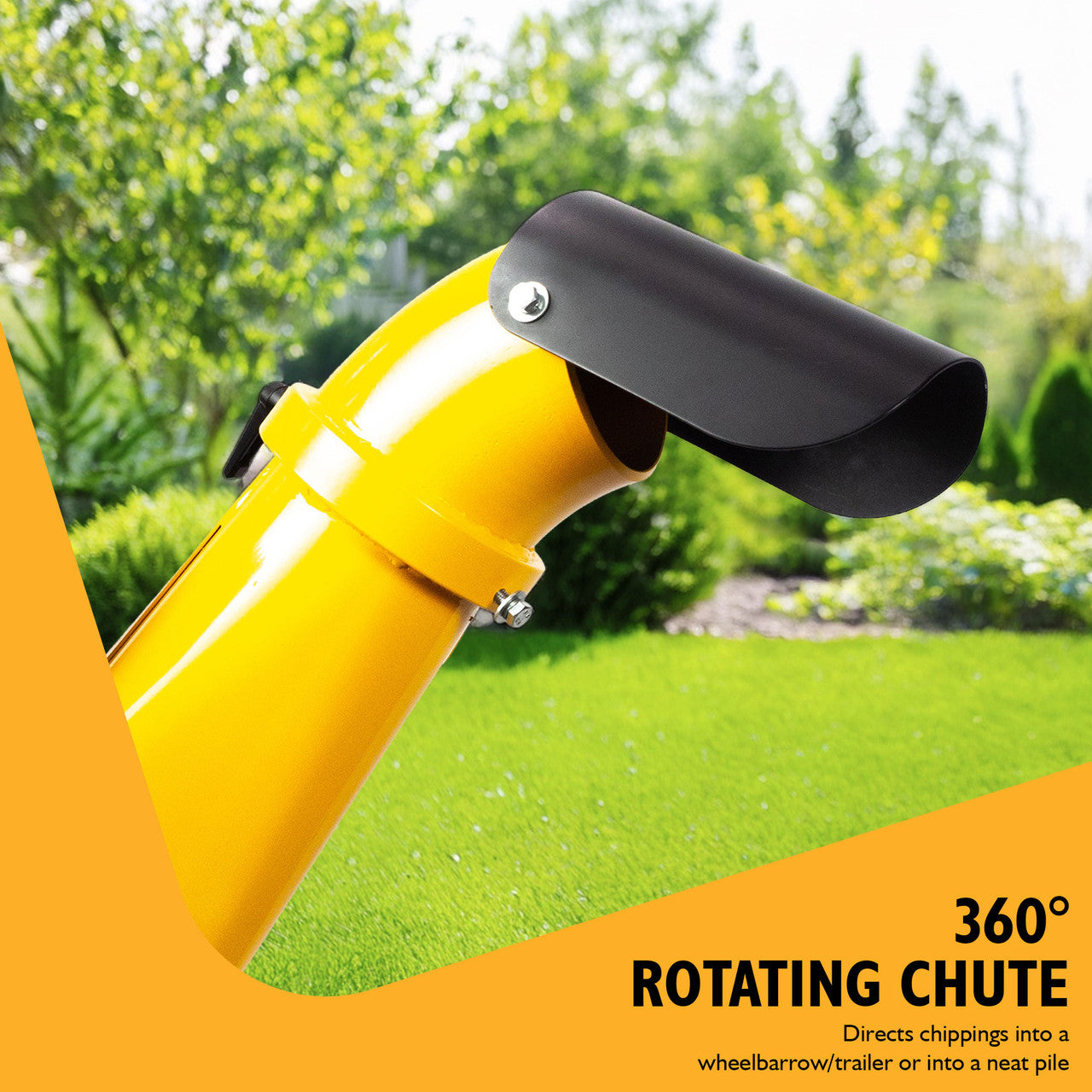

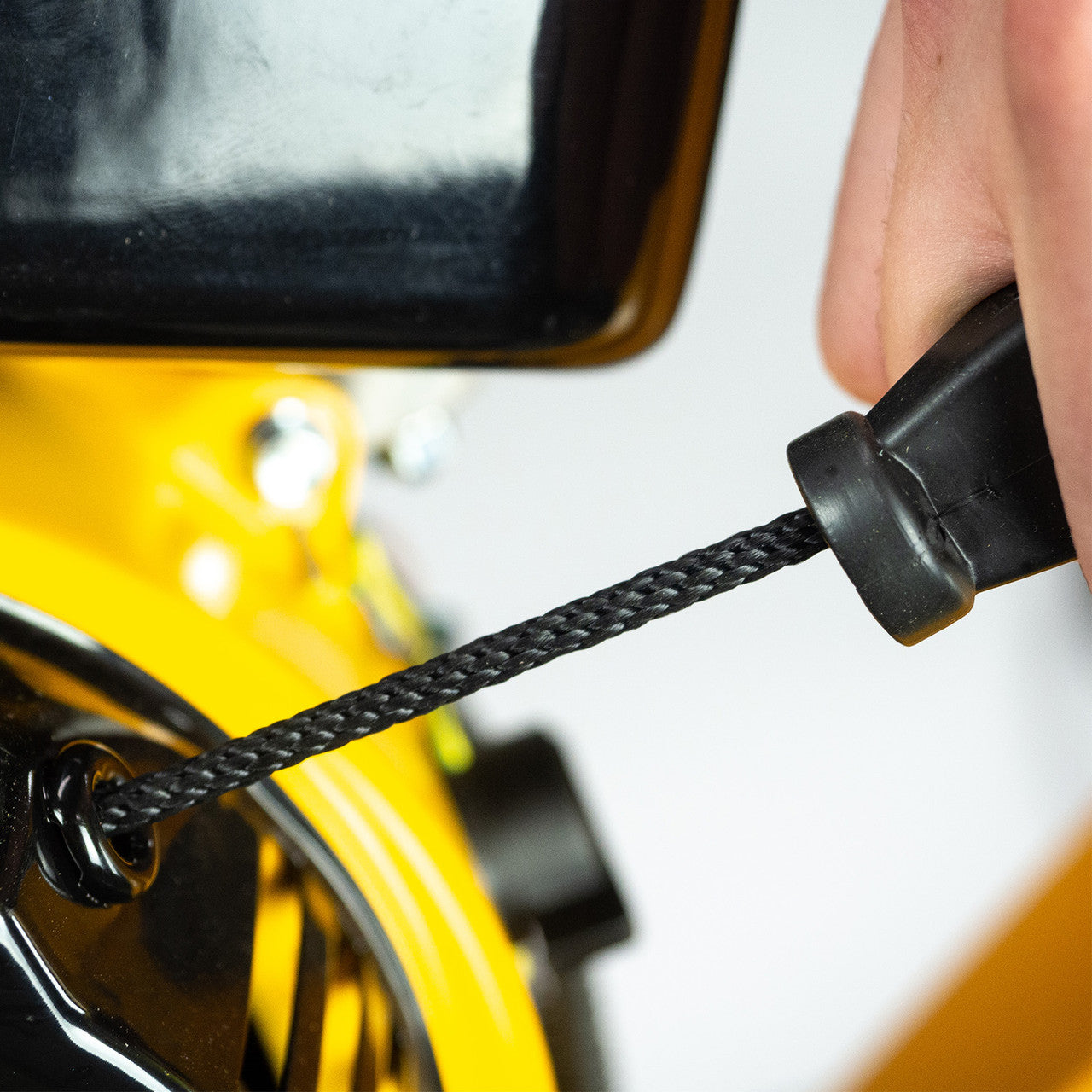

Powered with a market-leading 7.5hp 4 stroke JCB petrol Engine with easy recoil-start, and designed with a 360° rotating outlet chute and guide, it’s ideal to use when chipping wood into trailers, for compost, mulch or simply mulching the chippings prior to transportation.

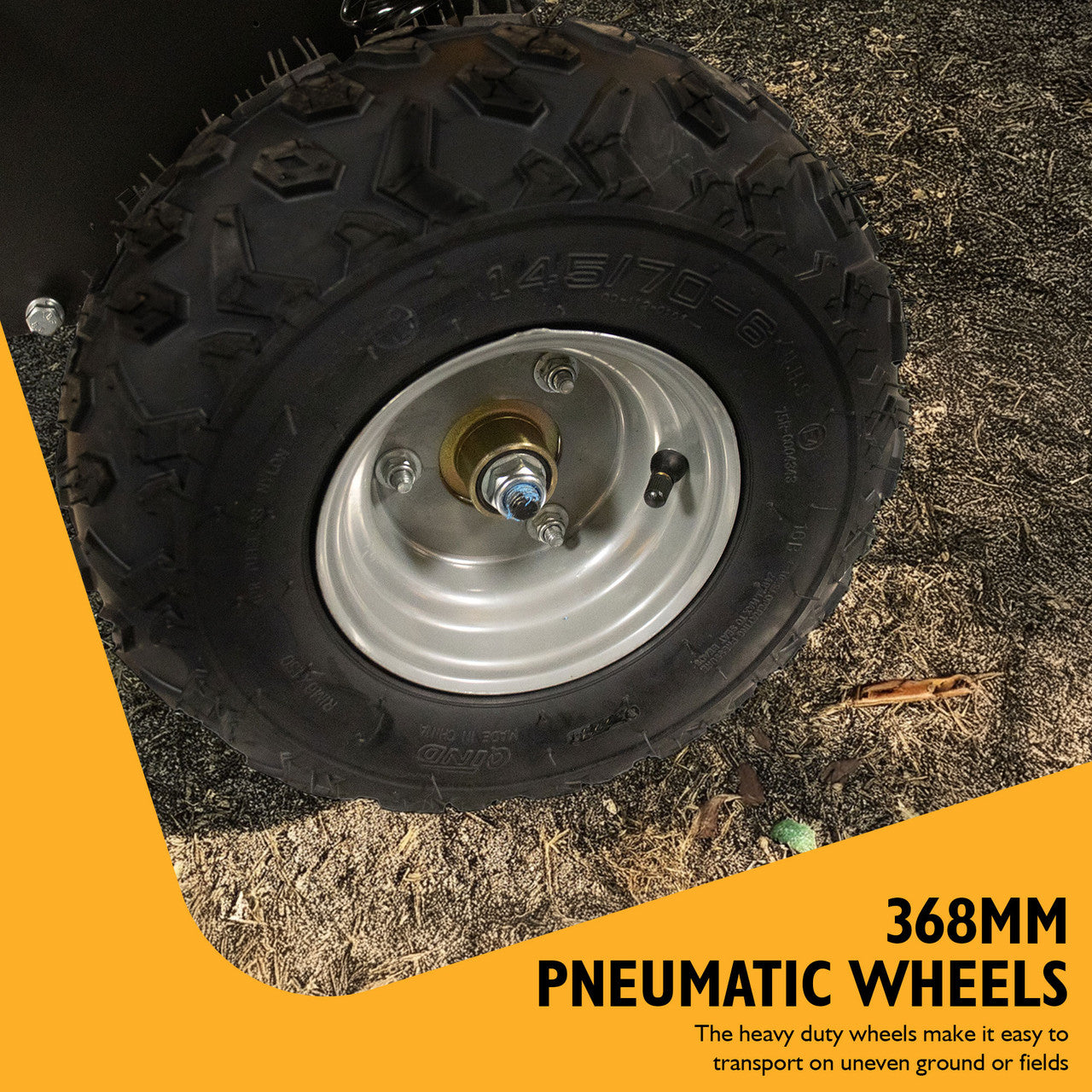

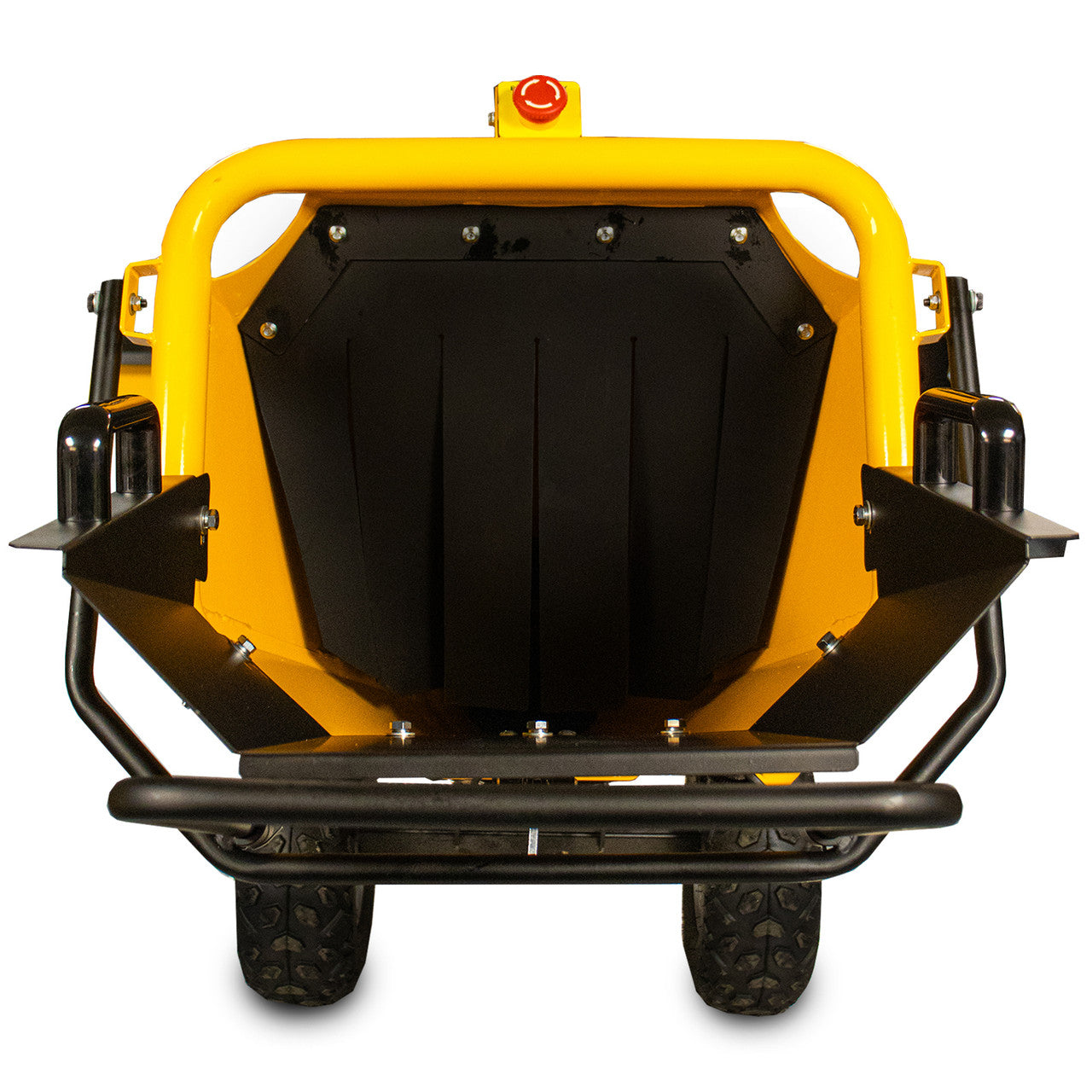

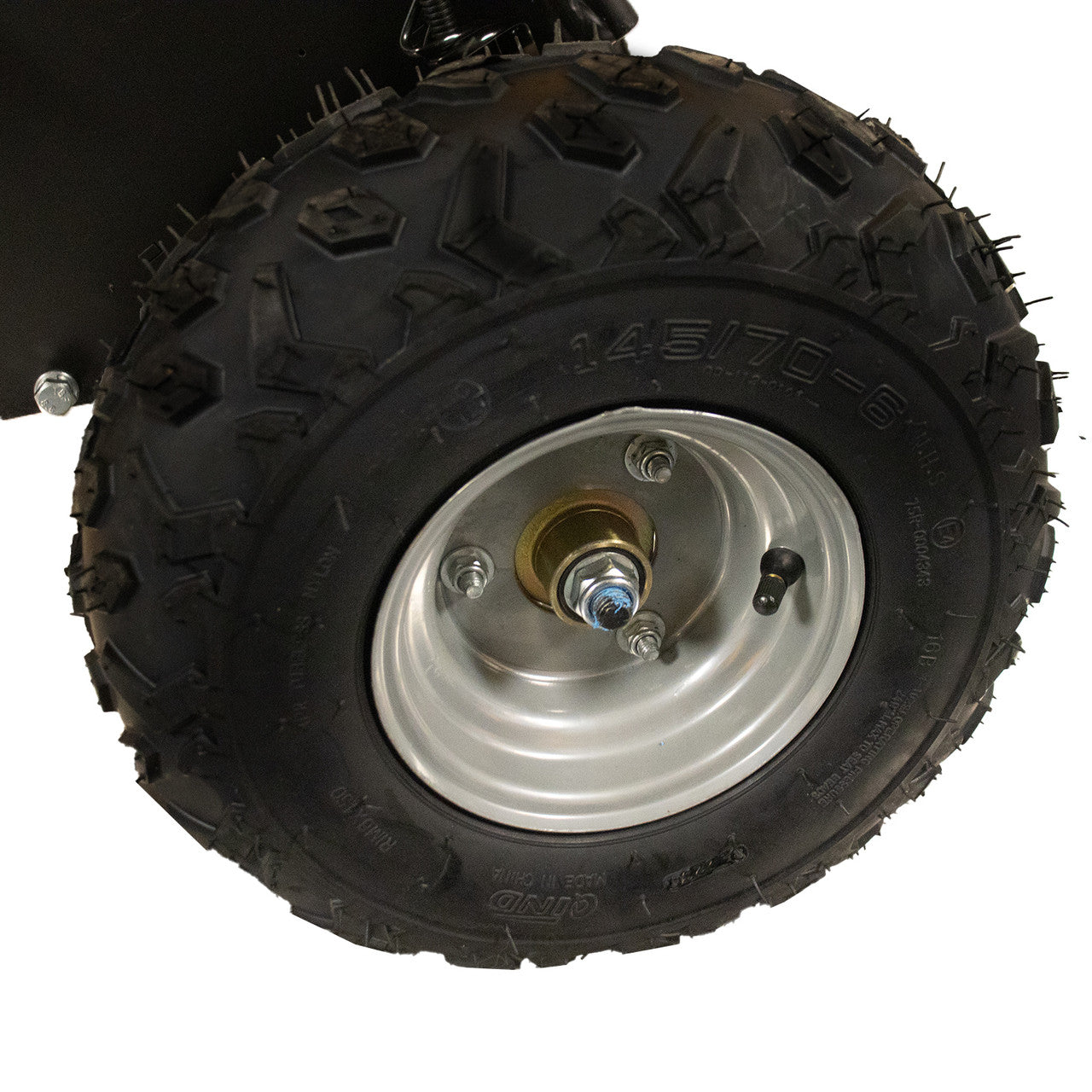

The heavy duty 14.5 Inch pneumatic wheels make it easy to transport on uneven ground or fields and the twin reversible blades can rapidly chip cumbersome pieces of wood ready to be used for the chosen application.

The JCB-CH75100P comes with a 3 year domestic and 1 year commercial warranty, subject to terms.

 3 Year Warranty (Terms Apply)

Important:

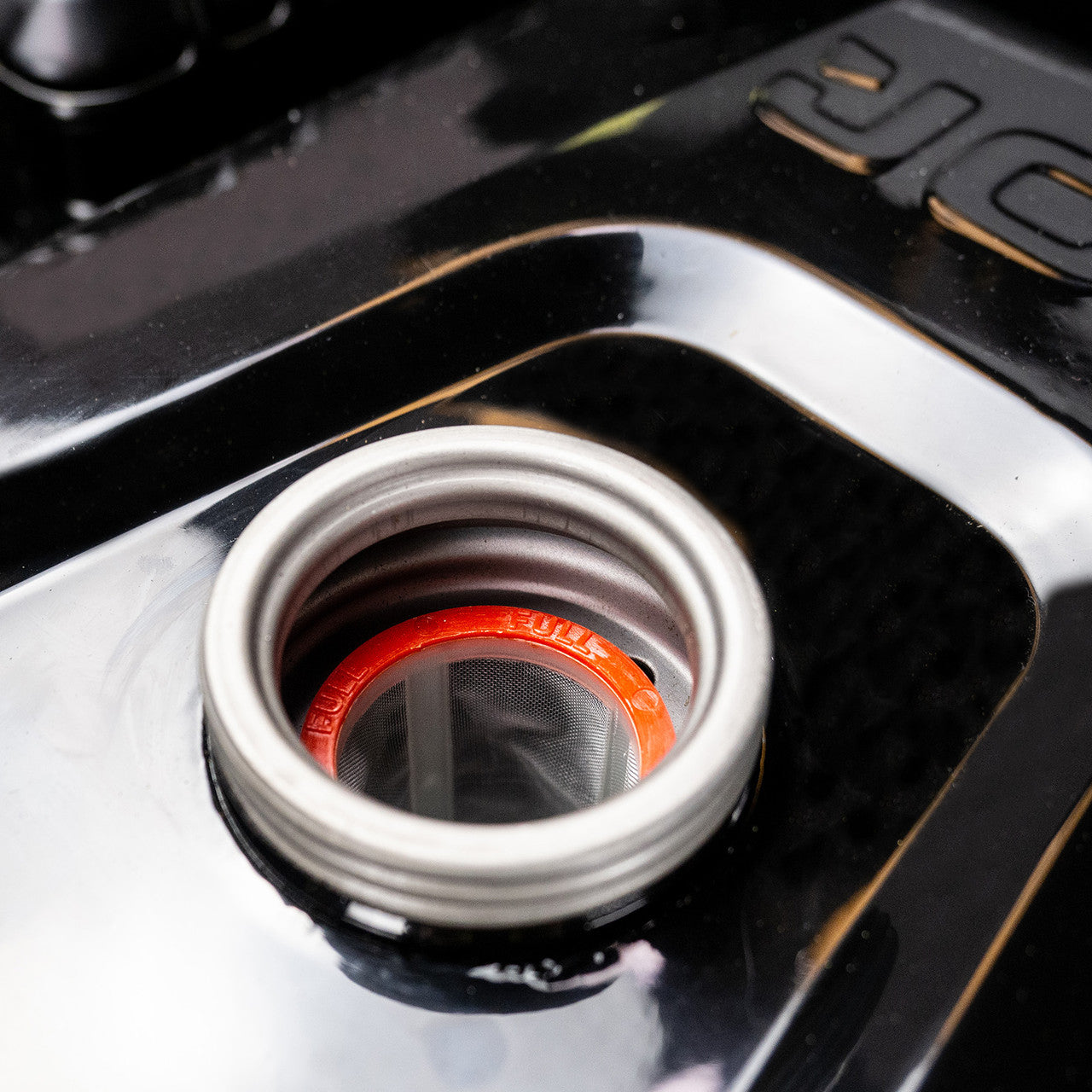

  1. If using E10 Petrol, this product must be used with high-quality unleaded fuel ONLY. ALWAYS use automotive petrol/gasoline suitable for four-stroke engines

  2. DO NOT mix fuel and oil.

  3. It is recommended to use E10 (95 RON) automotive fuel, with an appropriate additive or stabiliser in this product.

  4. Damage caused by failure to add fuel or using incorrect or poor-quality fuel is not covered by your warranty.

Caution:

  1. E10 petrol is hygroscopic and attracts moisture, which may damage the fuel system if stored in the product for more than four weeks.

  2. After draining the fuel tank, always run the engine until the last of the fuel in the system is spent and drain the float bowl when the engine is cool.

  3. E10 petrol should be used within 30 days of purchase.

  4. Some petrol brands contain other quantities of ethanol. DO NOT use fuels with more than 10% ethanol in your product.

  5. Always store and dispose of fuels responsibly and in accordance with local regulations.

Specifications

Chipping Capacity (mm)100
Disc Size (mm) (Diameter / Thickness)350
Disc Speed (RPM)2800
Drive TypeBelt Drive
EAN5059608313079
Engine ModelJCB-E225P
Engine OilSAE 30 or 15W40
Engine Oil Capacity (ml)600
Engine Size (cc)224
Engine Type4 Stroke OHV Single Cylinder
FeaturesATV Towing Bar, 360 degree Rotating Chute
Feed Hopper Opening Size (mm)450 x 378
Fuel / Power SourcePetrol
Fuel Capacity (L)3.6
Gross Weight (kg)148
In The BoxPetrol Wood Chipper, Manual, Tool Set
Infeed Throat Opening Size (mm)148 x 223
KnivesTwin Reversible Blades
ModelJCB-CH75100P
Net Weight (kg)120
Package Dimensions (H x W x L) (mm)910 x 565 x 860
Product Dimensions (H x W x L) (mm)860 x 651 x 2279
Rated Power (hp)7.5

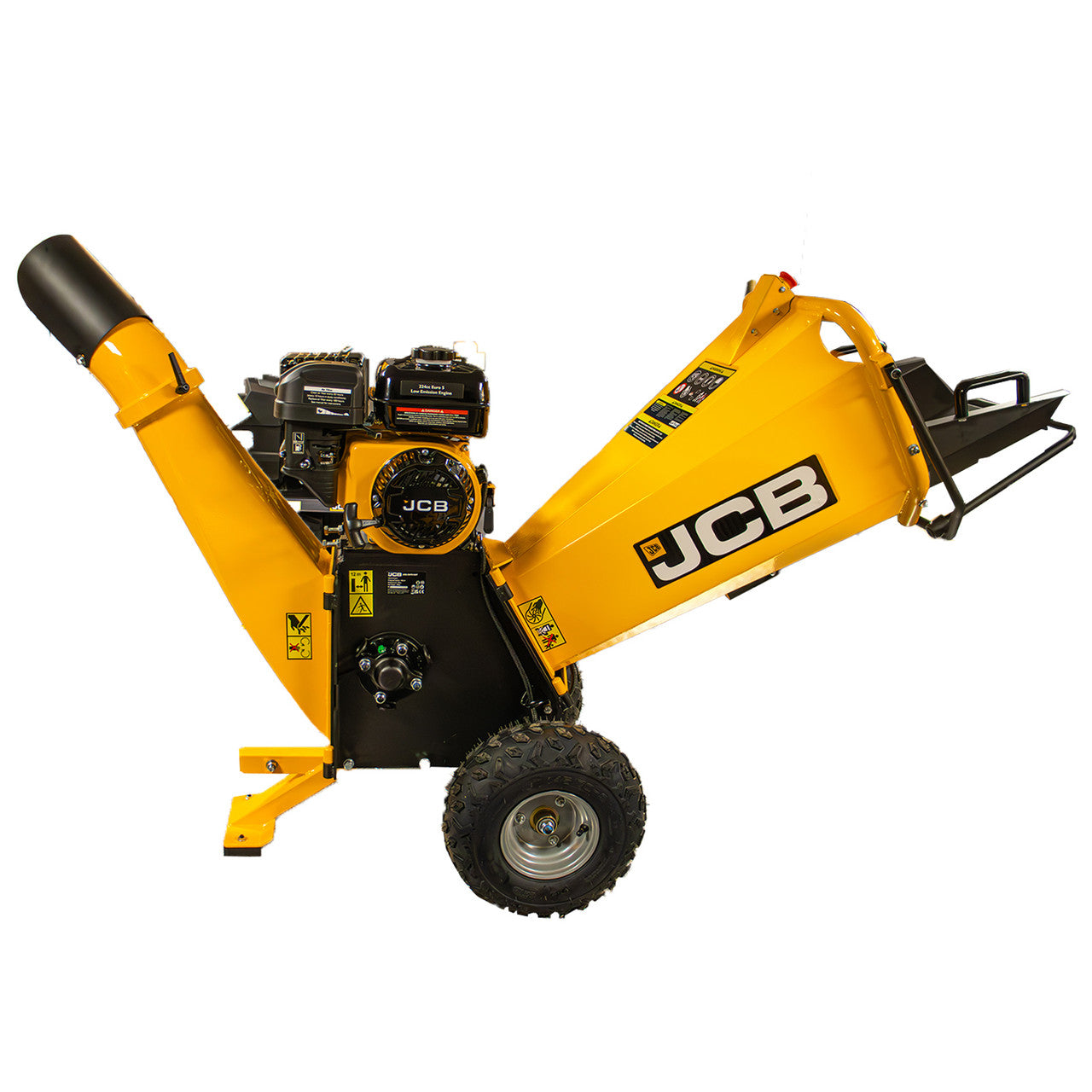

Safety FeaturesEmergency Stop Button Emergency bar
Sound Level (dB)118
Start MethodRecoil
TyresPneumatic
Wheel Diameter (mm)368
Wheel Size (inches)14.5

Support

JCB-CH75100P Manual PDF Document
Download
